iFAB-Defect is the first of the iFAB modules to be released from
Zenpire. The purpose of iFAB-Defect is to parse, view, modify,
and store files coming from various defect inspection stations from
KLA-Tencor, ADE, Inspex, TSK, Applied Materials (Orbot), and August
Technology. Each of these vendor's inspectors are capable of creating
defect results files in the TFF (Tencor File Format) or KLARF (KLA
Results File) file formats which are also able to be read and written
by iFAB-Defect module. (Refer to supported file formats here)

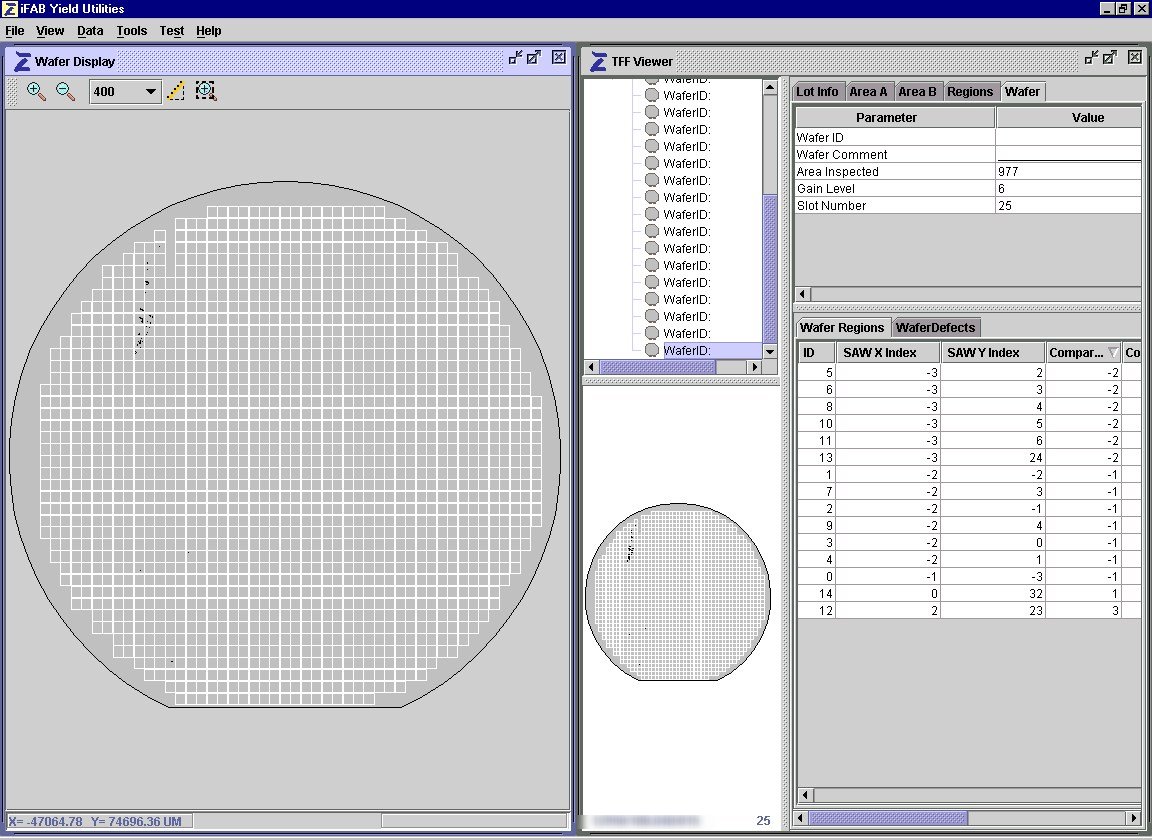

iFAB-Defect displays all the pertinent information in the TFF and
KLARF files in a neatly organized and windowed display. Defect locations
and sizes are displayed with their inspection regions on a colorful
wafer map that can be zoomed in and out very easily. Once zoomed
in, defect distances can be measured using a handy ruler tool. To
zoom in on an inspection region, all the user has to do is double-click
within the boundaries of that region and another window pops up
showing all the defects within that region. The "region"
view can also be magnified and the distances can be measured. Within
this die view, the defect map can be saved as a layer in a GDS-II
file for import into any chip design software package supporting
GDS-II import. All wafer and region displays can be saved to a variety
of graphics files (refer to supported file formats here).
To assist in locating defects on a wafer, the current position of
the cursor on the wafer is updated on the wafer map as the cursor
is moved. Several layers or wafers can be displayed at the same
time using different colors.
Unlike other similar tools, the TFF and KLARF data can be edited.
Defect positions can be shifted in the X or Y direction or rotated
around the center or another point within the wafer. Why do this?
Inspectors are not perfect and alignment inconsistency is frequent
especially when different machines, layers, and recipes are involved,
To get data to overlay, "conditioning" of the defect data
is required for some layers. Defects can be added or deleted using
the user interface. Defect sizes and scattering intensities can
also be scaled. Lot infomation can also be edited, very useful for
binary TFF files.
Additionally, iFAB-Defect can convert KLARFs to TFFs and TFFs to
KLARFs. It seems that most sites prefer one format to the other.
Some inspectors are isolated from the other equipment because they
do not output the approved file type. iFAB-Defect can remedy this.
Like all iFAB modules, iFAB-Defect can run on most popular computer
platforms (Windows 95,98,NT; Solaris; HP-UX; Linux; Apple). iFAB-Defect
is also bundled with the
iFAB-Utilities, most notably the FTP client and the word processor.
Using the FTP client, files can be retrieved anywhere on the site's
network and loaded into iFAB-Defect. The bundled word processor
allows the user to view and edit text files such as the KLARF, without
calling up another application.
|
|
If defect files are to be displayed immediately after inspection,up
until now the options were: (1) take up valuable inspector time
and look at the wafer maps on the machine, (2) wait for the data
to be loaded into the database and query the database, (3) look
at the printout from the inspector. In each case time is wasted:
either the engineer's or the inspector's. With iFAB-Defect, defect
files can read on any machine that is networked to the inspector
(Windows 95,98,NT; Solaris; HP-UX; Linux; Apple). By mounting the
iFAB machine to the inspector (easy to do) files can be loaded off-line
and anywhere in the fab immediately after the inspection.. Defect
map viewing can benefit from all the added features iFAB-Defect
has over printouts and the inspector's software package, such as
magnification, overlay from previous layers and other wafers,and
other measurement tools.
|
|
Because iFAB-Defect can output an inspections regions worth of
defects to a GDS-II layer and this GDS-II layer can be imported
as a layer with any CAD tool, defects can be overlaid to the devices
as designed onto the chip. Much like viewing the overlay of poly
to metal lines using the CAD tools from Cadence and Tanner, this
"defect" layer can be displayed over FOX, Poly, contact,etch
layers looking for any sensitivities and commonalties.
|
